This page is for finding a classifier on the KMNIST dataset. This dataset is more challenging than the original MNIST dataset that I have previously solved.

The details of the dataset can be found in the associated paper.

In short, since the reformation of the Japanese education in 1868, there became a standardisation of the kanji characters, and in the present day, most Japanese people cannot read the texts from 150 years ago.

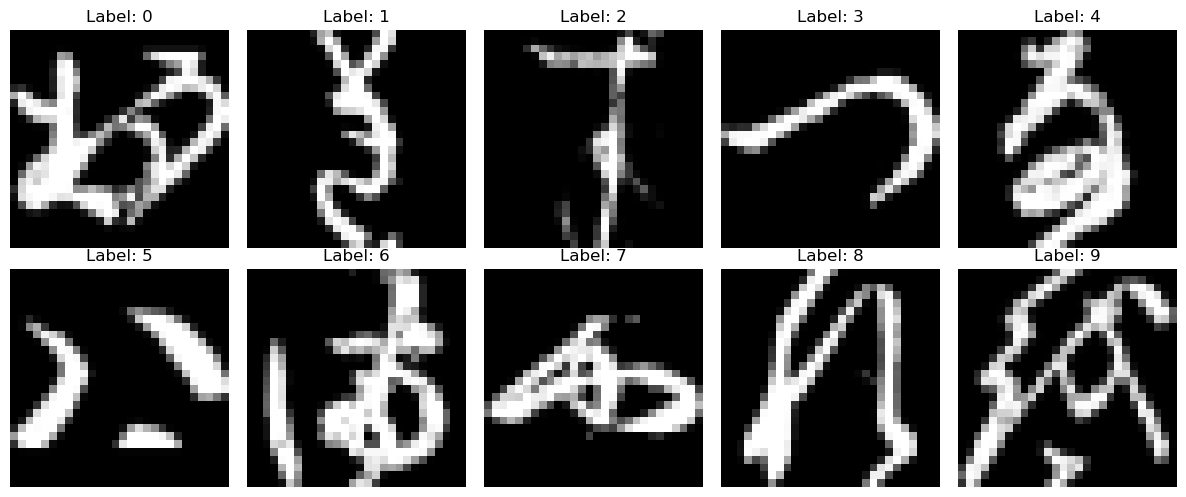

The dataset additionally contains 10 Hiragana characters with 7000 samples per class, we will begin our classification task by fitting increasingly sophisticated architectures to this simpler task.

0="o", 1="ki", 2="su", 3="tsu", 4="na", 5="ha", 6="ma",7="ya", 8="re", 9="wo"

Imports

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
import sklearn.metrics as metrics
import numpy as np
from torchvision import datasets, transforms
/opt/anaconda3/envs/metal/lib/python3.11/site-packages/torchvision/io/image.py:14: UserWarning: Failed to load image Python extension: 'dlopen(/opt/anaconda3/envs/metal/lib/python3.11/site-packages/torchvision/image.so, 0x0006): Library not loaded: @rpath/libjpeg.9.dylib
  Referenced from: <EB3FF92A-5EB1-3EE8-AF8B-5923C1265422> /opt/anaconda3/envs/metal/lib/python3.11/site-packages/torchvision/image.so
  Reason: tried: '/opt/anaconda3/envs/metal/lib/python3.11/site-packages/torchvision/../../../libjpeg.9.dylib' (no such file), '/opt/anaconda3/envs/metal/lib/python3.11/site-packages/torchvision/../../../libjpeg.9.dylib' (no such file), '/opt/anaconda3/envs/metal/lib/python3.11/lib-dynload/../../libjpeg.9.dylib' (no such file), '/opt/anaconda3/envs/metal/bin/../lib/libjpeg.9.dylib' (no such file)'If you don't plan on using image functionality from `torchvision.io`, you can ignore this warning. Otherwise, there might be something wrong with your environment. Did you have `libjpeg` or `libpng` installed before building `torchvision` from source?
  warn(

Testing and Training Loops

def train(model, device, train_loader, optimizer, epoch):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if batch_idx % 100 == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                100. * batch_idx / len(train_loader), loss.item()))

def test(model, device, test_loader):
    model.eval()
    test_loss = 0
    correct = 0
    conf_matrix = np.zeros((10,10)) # initialize confusion matrix
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            # sum up batch loss
            test_loss += F.nll_loss(output, target, reduction='sum').item()
            # determine index with maximal log-probability
            pred = output.argmax(dim=1, keepdim=True)
            correct += pred.eq(target.view_as(pred)).sum().item()
            # update confusion matrix
            conf_matrix = conf_matrix + metrics.confusion_matrix(
                          target.cpu(),pred.cpu(),labels=[0,1,2,3,4,5,6,7,8,9])
        # print confusion matrix
        np.set_printoptions(precision=4, suppress=True)
        print(type(conf_matrix))
        print(conf_matrix)

    test_loss /= len(test_loader.dataset)

    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))

Create Architectures

class NetLin(nn.Module):
    # linear function followed by log_softmax
    def __init__(self):
        super(NetLin, self).__init__()
        self.fc = nn.Linear(28 * 28, 10)
        self.log_softmax = nn.LogSoftmax(dim=1)

    def forward(self, x):
        x = x.view(-1, 28 * 28)  # flatten the image into a vector
        x = self.fc(x)  # apply the linear layer
        x = self.log_softmax(x)  # apply log softmax
        return x

class NetFull(nn.Module):
    # two fully connected tanh layers followed by log softmax
    def __init__(self):
        super(NetFull, self).__init__()
        self.layer1 = nn.Linear(28 * 28, 100)
        self.layer2 = nn.Linear(100, 10)
        self.hid_act = nn.Tanh()
        self.hid_out = nn.LogSoftmax(dim=1)

    def forward(self, x):
        x = x.view(-1, 28 * 28)
        x = self.layer1(x)
        x = self.hid_act(x)
        x = self.layer2(x)
        x = self.hid_out(x)
        return x

class NetConv(nn.Module):
    # two convolutional layers and one fully connected layer,
    # all using relu, followed by log_softmax
    def __init__(self):
        super(NetConv, self).__init__()
        self.conv1 = nn.Conv2d(1, 128, kernel_size=3, stride=1, padding=1)
        self.conv2 = nn.Conv2d(128, 256, kernel_size=5, stride=2, padding=1)
        self.pool = nn.MaxPool2d(kernel_size=2, stride=2)
        self.fc = nn.Linear(256 * 6 * 6, 10)
        self.relu = nn.ReLU()
        self.act = nn.LogSoftmax(dim=1)

    def forward(self, x):
        x = self.conv1(x)
        x = self.relu(x)
        x = self.conv2(x)
        x = self.relu(x)
        x = self.pool(x)

        #x = x.flatten(1)
        x = x.view(-1, 256 * 6 * 6)
        x = self.fc(x)
        x = self.act(x)

        return x

Training loop

    def main(model, lr=0.01, mom=0.5, epochs=10):
      use_mps = torch.backends.mps.is_available()
      device = torch.device('mps' if use_mps else 'cpu')

      kwargs = {'num_workers': 1, 'pin_memory': True} if use_mps else {}

      # define a transform to normalize the data
      transform = transforms.Compose([transforms.ToTensor(),
				      transforms.Normalize((0.5,), (0.5,))])

      # fetch and load training data
      trainset = datasets.KMNIST(root='./data', train=True, download=True, transform=transform)
      train_loader = torch.utils.data.DataLoader(trainset, batch_size=64, shuffle=False)

      # fetch and load test data
      testset = datasets.KMNIST(root='./data', train=False, download=True, transform=transform)
      test_loader = torch.utils.data.DataLoader(testset, batch_size=64, shuffle=False)

      # choose network architecture
      if model == 'lin':
	  net = NetLin().to(device)
      elif model == 'full':
	  net = NetFull().to(device)
      else:
	  net = NetConv().to(device)

      if list(net.parameters()):
	  # use SGD optimizer
	  #optimizer = optim.SGD(net.parameters(), lr=lr, momentum=mom)

	  # use Adam optimizer
	  #optimizer = optim.Adam(net.parameters(),lr=lr,
	  #                             weight_decay=0.00001)
	  optimizer = optim.SGD(net.parameters(),lr=lr,momentum=0.9,
				      weight_decay=0.00001)

	  # training and testing loop
	  for epoch in range(1, epochs + 1):
	      train(net, device, train_loader, optimizer, epoch)
	      test(net, device, test_loader)

  main('lin')
  #main('full')
  #main('conv')

Confusion Matrices

In the NetLin method, we have the characters "na" misclassified as "o" (63 preds), "ki" (51 preds) and "su" (80 preds). The character "ma" is also misunderstood by the linear classifier as "su" (149 times) and "na" (26 times).

The NetFull Matrix performs better with 84% accuracy, but continues to misclassify "ma" as "su" 62 times. "ha" is misclassified as "su" (85 times) and "na" as "o" 40 times.

Finally, our CNN does the best, but continues to misclassify "na" as "o" and "tsu" 22 and 18 times respectively. An improvement though, no doubt.

Linear (Netlin)

[[768.   6.   9.  13.  29.  64.   2.  62.  29.  18.]
 [  7. 667. 109.  18.  26.  22.  59.  14.  27.  51.]
 [  7.  60. 694.  27.  25.  19.  46.  35.  47.  40.]
 [  5.  36.  61. 763.  15.  53.  12.  18.  28.   9.]
 [ 63.  51.  80.  19. 621.  20.  33.  37.  20.  56.]
 [  7.  28. 123.  16.  19. 726.  28.   9.  34.  10.]
 [  5.  22. 149.  10.  26.  26. 719.  21.   9.  13.]
 [ 18.  29.  28.  12.  84.  14.  56. 622.  89.  48.]
 [ 12.  37.  91.  43.   6.  30.  45.   7. 708.  21.]
 [  8.  52.  84.   4.  53.  31.  17.  32.  41. 678.]]

Test set: Average loss: 1.0087, Accuracy: 6966/10000 (70%)

Fully Connected 2-layer (NetFull)

    [[842.   4.   3.   5.  30.  29.   4.  44.  33.   6.]
 [  4. 796.  37.   6.  28.  12.  65.   5.  21.  26.]
 [  8.  13. 845.  28.   9.  19.  24.  16.  24.  14.]
 [  3.   9.  34. 910.   2.  13.   7.   6.   8.   8.]
 [ 40.  26.  27.   8. 811.   7.  29.  17.  17.  18.]
 [ 10.  13.  85.  15.  12. 824.  21.   2.  16.   2.]
 [  3.   9.  62.   6.  20.   6. 878.   7.   2.   7.]
 [ 19.  15.  23.   5.  19.  11.  36. 815.  28.  29.]
 [ 12.  31.  34.  43.   4.  11.  27.   5. 827.   6.]
 [  7.  19.  58.   3.  29.   6.  24.  17.  18. 819.]]

Test set: Average loss: 0.5316, Accuracy: 8367/10000 (84%)

Convolutional Network

    [[953.   1.   5.   0.  12.   8.   0.  14.   6.   1.]
 [  2. 935.  12.   1.   6.   3.  27.   5.   2.   7.]
 [  8.   2. 869.  60.   7.  18.  24.   6.   3.   3.]
 [  0.   0.  29. 947.   2.  11.   4.   2.   1.   4.]
 [ 22.   5.   9.  18. 899.   9.  13.   6.  15.   4.]
 [  1.   5.  31.   8.   4. 931.  15.   1.   0.   4.]
 [  0.   5.  21.   8.   4.   2. 951.   6.   1.   2.]
 [ 11.   9.   4.   4.   6.  10.  10. 920.  10.  16.]
 [  5.  10.   9.   7.   5.   4.   4.   0. 955.   1.]
 [  7.  11.   4.   4.   8.   3.   0.   2.   5. 956.]]

Test set: Average loss: 0.3835, Accuracy: 9316/10000 (93%)

Calculations of Independent Parameters

Netlin

The number of independent parameters is \[(784\times100 + 100) + 100\times10 + 10 = 79,510\]

which is calculated by the weights of the first layer \(784\times 100\) added to the biases, \(100\). this is then added to the weights of the second layer \(100\times 10\) plus the biases for the outputs, \(10\); resulting in \(79,510\)

Convolution

Conv1 Layer Each filter has \(1\times 3\times 3 = 9\) parameters; there are 128 filters \(\rightarrow 1152\). Then each filter has a bias so \(1,280\) for Conv1 layer.

Then, in Conv2 Layer each of the 256 filters have \(128 \times 5 \times 5 = 3200\) parameters. This coupled with the biases gives 819456.

Finally, we have the Fully Connected Layer: \(256\times6\times6\) multiplied by the output dimensionality, \(10 = 92160\). Plus biases = 92170

Ultimately, \(1280 + 819456 + 92170 = 912906\) independent parameters.
