Linux

unix is less an operating system than a worldview: everything is a file, every program does one thing, and text streams are the universal interface. linux is the worldview’s most successful implementation — a monolithic kernel started by a finnish undergraduate in 1991, now running most of the internet, every android phone, and the top 500 supercomputers without exception. 𐃏 this page is the trunk; the sharpened tools each get their own branch:

• shell/s — the REPL for the operating system itself
• vim — text editing as a language

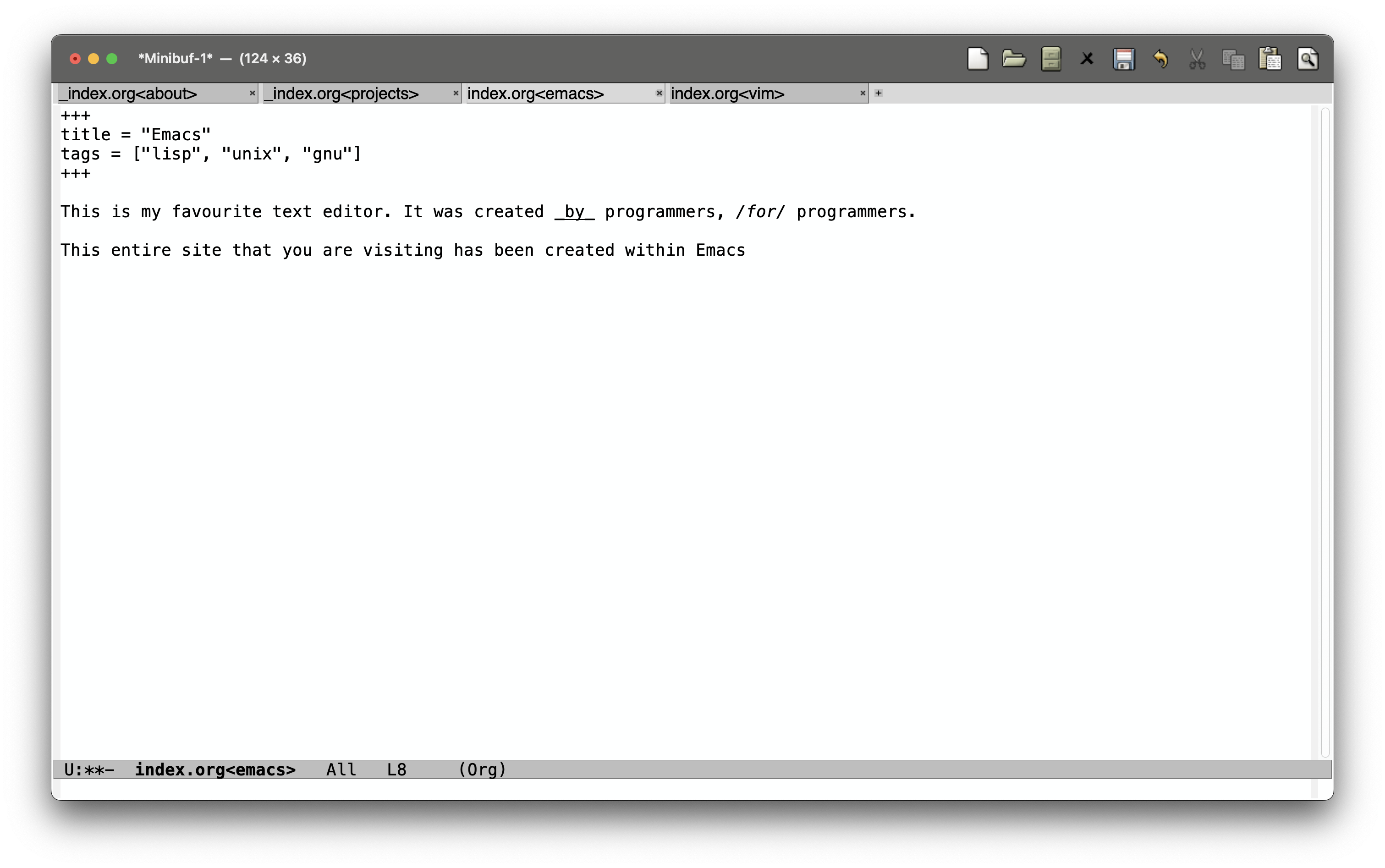

• emacs — the other church
• regular expressions — the pattern language every unix tool speaks
• gdb — watching processes from the inside

kernel vs userland#

one line divides the machine: the CPU’s privilege boundary. the kernel runs privileged — it owns the hardware, the scheduler, the page tables, the filesystems, the network stack. userland is everything else: your shell, your editor, your database, all sandboxed into per-process virtual address spaces and allowed to touch reality only by asking.

the asking mechanism is the system call: a controlled trap into the kernel (read, write, open, fork, execve, mmap, …). a syscall is a function call that changes privilege level, which makes it expensive relative to a normal call — hence buffered I/O in libc, and hence decades of engineering to keep hot paths out of the kernel (Tanenbaum, Andrew S., 2008).

the memory system is the part worth holding in your head (the original stub of this page was three words: pagetables, TLB, cache — fair summary): each process sees a flat virtual address space; page tables map virtual pages to physical frames; the TLB caches those translations because walking a four-level page table on every access would be ruinous; and the hardware caches (L1/L2/L3) sit under all of it hiding DRAM latency. the deep dive lives in memory.

the process model: fork, exec, wait#

unix creates processes by cloning: fork() duplicates the calling process — same code, same (copy-on-write) memory, same open file descriptors — and returns twice: the child sees 0, the parent sees the child’s pid. the child then usually calls execve(), which replaces its entire program image with a new one while keeping the pid and file descriptors. the parent calls wait() to collect the child’s exit status. every shell command you have ever run is this trio (Tanenbaum, Andrew S., 2008).

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/wait.h>

int main(void) {
    printf("parent: pid=%d\n", getpid());
    fflush(stdout);                      /* don't let the child inherit the buffer */

    pid_t pid = fork();                  /* one process in, two out */
    if (pid == 0) {                      /* child sees 0 */
        printf("child : pid=%d ppid=%d\n", getpid(), getppid());
        fflush(stdout);
        execlp("echo", "echo", "child : exec replaced me with echo", (char *)NULL);
        perror("execlp");                /* reached only if exec failed */
        exit(1);
    }
                                         /* parent sees the child's pid */
    int status;
    waitpid(pid, &status, 0);            /* reap the child: no zombie */
    printf("parent: child %d exited with status %d\n", pid, WEXITSTATUS(status));
    return 0;
}

compiled with cc -Wall -o fork_demo fork_demo.c and run:

parent: pid=74830
child : pid=75103 ppid=74830
child : exec replaced me with echo
parent: child 75103 exited with status 0

the fflush before fork() is a genuine footgun, not pedantry: fork duplicates the stdio buffer too, and if stdout is redirected to a pipe or file (fully buffered), unflushed output prints twice. 𐃏 (Kernighan, Brian W. and Ritchie, Dennis M., 1988)

a child that exits before being wait()-ed becomes a zombie: dead, but its exit status still occupies a process-table slot until the parent collects it. a child whose parent dies first is an orphan, adopted and reaped by init (pid 1).

the filesystem hierarchy#

one rooted tree, no drive letters; disks, USB sticks, and even RAM-backed filesystems are mounted onto directories. the directories that matter:

/proc deserves the double-take: cat /proc/self/status is a file read that fabricates its contents from kernel state on demand. “everything is a file” is not a slogan, it is an API decision.

permissions#

every file carries an owner, a group, and nine permission bits — read/write/execute for user, group, other. each triple is one octal digit (\(r=4\), \(w=2\), \(x=1\)):

$ touch report.txt && chmod 754 report.txt && ls -l report.txt
-rwxr-xr--  report.txt

\(754 = 111\,101\,100_2\): owner rwx (\(4+2+1\)), group r-x (\(4+1\)), other r-- (\(4\)). the common defaults decode the same way: 644 for files (owner edits, world reads), 755 for directories and executables — where x on a directory means “may traverse into it”, a distinction that bites exactly once. new files start from 666 (files) or 777 (directories) masked by your umask, conventionally 022.

the tenth bit worth knowing is setuid (chmod u+s, shown as s in place of the owner’s x):

$ chmod u+s report.txt && ls -l report.txt
-rwsr-xr--  report.txt

a setuid executable runs with its owner’s identity instead of the caller’s — the mechanism that lets passwd (owned by root) edit /etc/shadow for you. it is also the classic privilege-escalation surface, which is why modern systems keep the setuid inventory as short as possible (Tanenbaum, Andrew S., 2008).

processes and signals#

ps aux lists processes; top (or htop) watches them; kill is misnamed — it sends signals, of which termination is merely the default. the vocabulary:

(the stop/continue numbers vary between platforms, so they are spelled by name.) a process can catch or ignore everything except SIGKILL and SIGSTOP — the kernel’s two non-negotiables. escalation etiquette: SIGTERM first, give it a moment, SIGKILL only for the unresponsive, because a SIGKILLed process gets no chance to flush buffers or remove lock files.

job control is signals wearing shell syntax: sleep 100 & backgrounds a job, ctrl-z stops the foreground one, jobs lists them, fg %1 / bg %1 resume them in fore/background, and kill %1 addresses them by job number. nohup (or disown) detaches a job from the terminal so logout’s SIGHUP misses it.

pipes and redirection#

the unix philosophy in one operator: | connects one process’s stdout to another’s stdin through a kernel buffer, both processes running concurrently. programs become composable because they agree on the dumbest possible interface — a stream of bytes, usually lines of text. word-frequency analysis without writing a program:

$ printf 'to be or not to be that is the question\n' \
    | tr ' ' '\n' | sort | uniq -c | sort -rn | head -4
   2 to
   2 be
   1 the
   1 that

read it left to right: split words onto lines, sort so duplicates are adjacent (uniq only sees neighbours — the classic trap), count runs, sort numerically descending, keep four. five single-purpose tools, zero code. the same grammar handles files: > redirects stdout (truncating), >> appends, 2> redirects stderr, 2>&1 merges the two streams, < feeds stdin. the heavyweight stream tools — sed for editing in flight, awk for field-wise computation — are a page of their own over at regular expressions (Dougherty, Dale and Robbins, Arnold, 1997).

package management#

a package manager is a transactional installer with a dependency solver: it fetches signed archives from repositories, resolves the dependency graph, installs in the right order, and — crucially — knows how to undo. the family tree splits by lineage: debian/ubuntu use apt over .deb, red hat/fedora use dnf over .rpm, arch uses pacman, and macos fills the gap with homebrew or macports. the discipline they all buy you is the same: the package database is the inventory of your system, so nothing is installed that cannot be listed, verified, or removed. 𐃏

the boot chain#

power-on hands control to firmware (BIOS historically, UEFI now), which finds and runs a bootloader (GRUB, systemd-boot) — from the MBR under legacy BIOS, from the EFI system partition under UEFI; the bootloader loads the kernel image plus an initramfs — a small in-RAM root filesystem with just enough drivers to find the real one. the kernel initialises hardware, mounts the real root, and starts exactly one userland process: init, pid 1, which on nearly every modern distribution is systemd. systemd then brings up the rest of the system as a dependency graph of units — services, mounts, sockets, timers — in parallel, which is both why modern linux boots fast and why systemctl status is the first debugging command of the decade. everything running traces its ancestry to pid 1 — the process tree is literally a tree.

see also#

• internet networks — what the kernel’s other half is doing
• databases — fsync and pages, seen from above
• memory — pagetables, TLB, cache: the stub’s three words, expanded
• version control — the other tool that made unix development bearable

References#

Dougherty, Dale and Robbins, Arnold (1997). Sed \& Awk, O’Reilly Media.

Kernighan, Brian W. and Ritchie, Dennis M. (1988). The C Programming Language, Prentice Hall.

Tanenbaum, Andrew S. (2008). Modern Operating Systems, Pearson.
